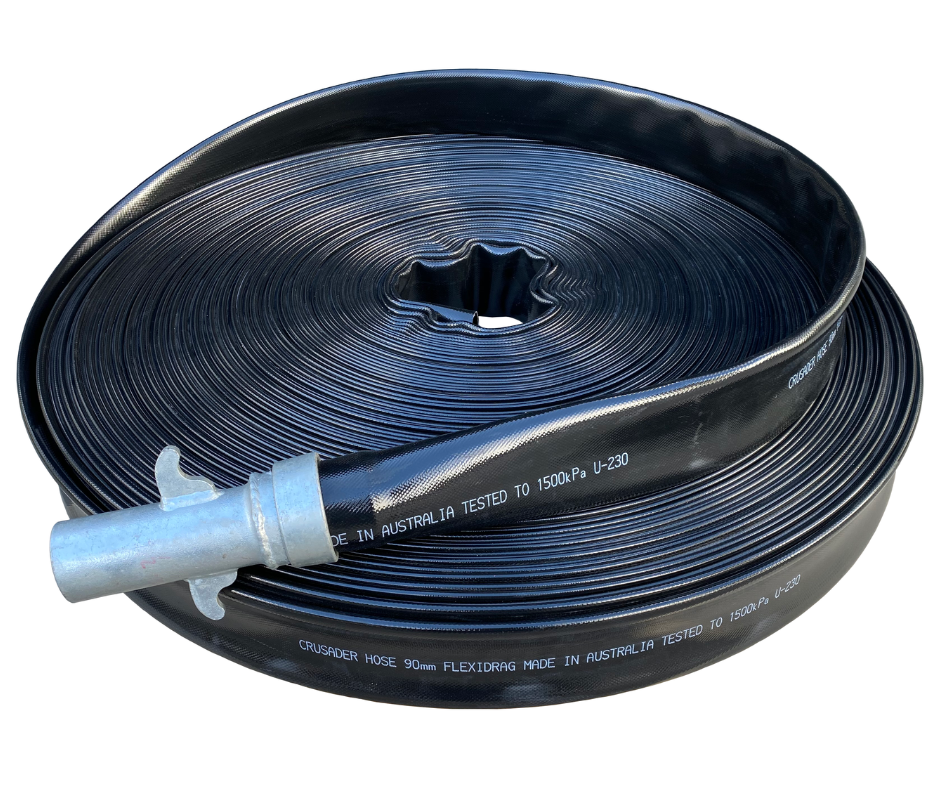

Flexidrag®
Premium irrigation layflat hose

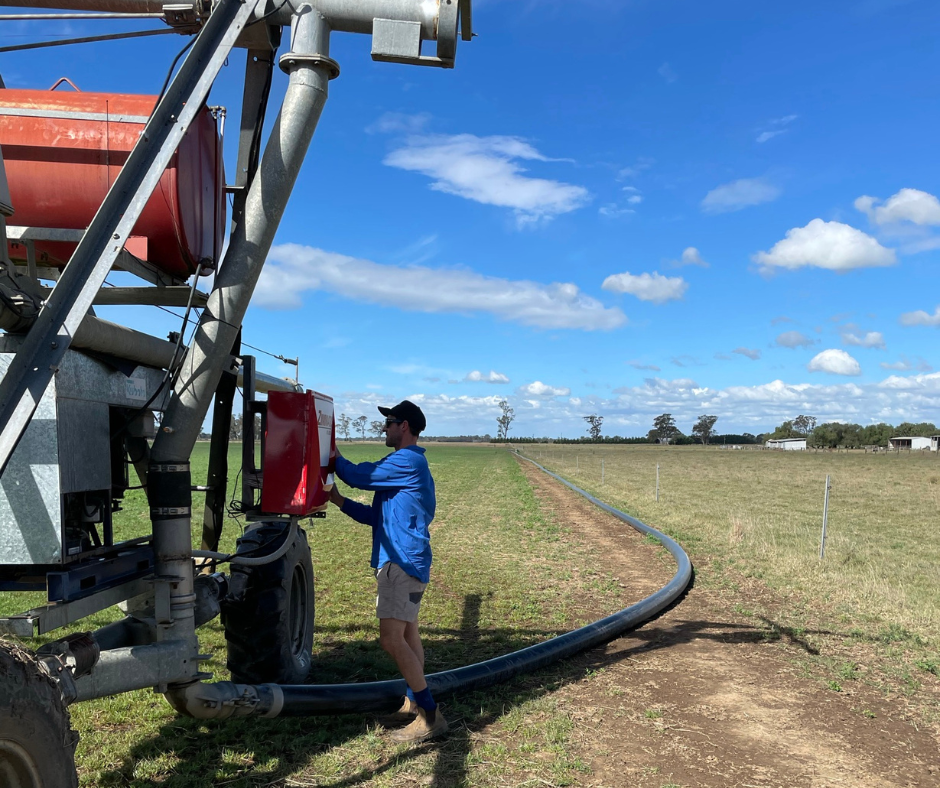

Flexidrag is a premium layflat irrigation hose designed for farmers and broadacre growers who rely on efficient water delivery across large areas. It’s ideal for lateral and travelling irrigators operating at low pressure and performs exceptionally well with water guns in high-pressure setups. Flexidrag solves common field challenges—its lighter weight makes it easier to handle than traditional rubber-coated hose, and its tight bend radius prevents kinking during use.
The extruded TPU construction ensures outstanding durability, while annealing enhances flexibility for smoother operation. UV-stabilised and built to withstand the harsh Australian sun, Flexidrag also offers excellent abrasion resistance. Every hose is thoroughly tested, and fitted assemblies can be supplied with certification, giving farmers confidence in long-term performance.
Technical Data
| Diameter (ID) | 40 mm | 51 mm | 64 mm | 76 mm | 90 mm | 102 mm | 114 mm | 127 mm | 152 mm |
| 1.5" | 2" | 2.5" | 3" | 3.5" | 4" | 4.5" | 5" | 6" | |
| Max. working pressure* | 2000 kPa | 2000 kPa | 2000 kPa | 2000 kPa | 2000 kPa | 2000 kPa | 1700 kPa | 1700 kPa | 1700 kPa |
| Min. burst pressure | 4000 kPa | 4000 kPa | 4000 kPa | 4000 kPa | 4000 kPa | 4000 kPa | 3500 kPa | 3500 kPa | 3500 kPa |
| Bend radius @ 30 psi | 0.6 m | 0.6 m | 0.7 m | 0.8 m | 0.9 m | 1.1 m | 1.3 m | 1.5 m | 1.7 m |
| Tensile load | 4 t | 4.5 t | 4 t | 4.5 t | 6 t | 7 t | 9 t | 12 t | 14 t |
| Weight/m | 0.5 kg | 0.6 kg | 0.7 kg | 0.8 kg | 0.9 kg | 1.0 kg | 1.3 kg | 1.5 kg | 1.8 kg |
| Avg. single wall thickness | 2.2 mm | 2.4 mm | 2.6 mm | 2.7 mm | 2.8 mm | 3.2 mm | 3.4 mm | 3.6 mm | 4.0 mm |
| Part # | HNA040XUA | HNA051XUA | HRA064XBA | HRA076XBA | HRA090XBA | HRA102XBA | HRA114XBA | HRA127XBA | HRA152XBA |
Large choice of diameters & lengths
Available sizes in lengths up to 350 m: 40 mm, 51 mm, 64 mm, 76 mm, 90 mm, 102 mm, 114 mm, 127 mm,152 mm
Long-lasting & high-quality product
The polyurethane hose has a high UV resistance and is not prone to cracking like rubber hose. This makes it an ideal travelling irrigator hose solution.
Features
- High burst pressure – up to 2,000 kPa
- Low bend radius – 1.1 m for 4”
- Lightweight & flexible
- Secure couplings
- vailable in continuous lengths up to 350 m
- Proudly Australian Made & factory tested
Primary uses
- Travelling irrigators
- Lateral irrigators
- Feed hose to pivot
- Farm use
