Flexiline™

Versatile layflat hose solution

Flexiline™

High-pressure hose for tough jobs

Flexiline is a versatile layflat hose solution trusted by mine operators, farmers, contractors, and emergency services who need reliable performance in high-pressure applications. Whether it’s dewatering, water transfer, or emergency response, Flexiline gets the job done efficiently. It solves common handling challenges—being easier to manage than heavier alternatives, especially during setup and relocation. Quick-connect couplings, including Bauer, make deployment fast and hassle-free. For longer lengths, our reel systems ensure safe and efficient handling. With a tough polyurethane cover and reinforced construction, Flexiline offers durability and peace of mind. Every hose is fully tested, and fitted assemblies can be supplied with certification, giving users confidence in demanding environments.

Technical Data

Diameter (ID)102 mm152 mm203 mm
4"6"8"
Max. working pressure*1500 kPa1500 kPa1500 kPa
Min. burst pressure3000 kPa3000 kPa3000 kPa
Tensile load8 t14 t18 t
Weight/m1.5 kg2.1 kg2.8 kg
Avg. single wall thickness3.2 mm3.7 mm4.0 mm
Part #HNF102XBAHNF152XBAHNF203XBA
*Dependent on maximum working pressure of attached couplings if lower.

Large choice of diameters & lengths

Available sizes in standard 20 m length assemblies or continuous lengths up to 200 m: 102 mm, 152 mm, and 203 mm

Long-lasting & high-quality product

This PU covered hose has a high burst pressure plus abrasion resistance.

Features

Primary uses

The tough, versatile layflat hose

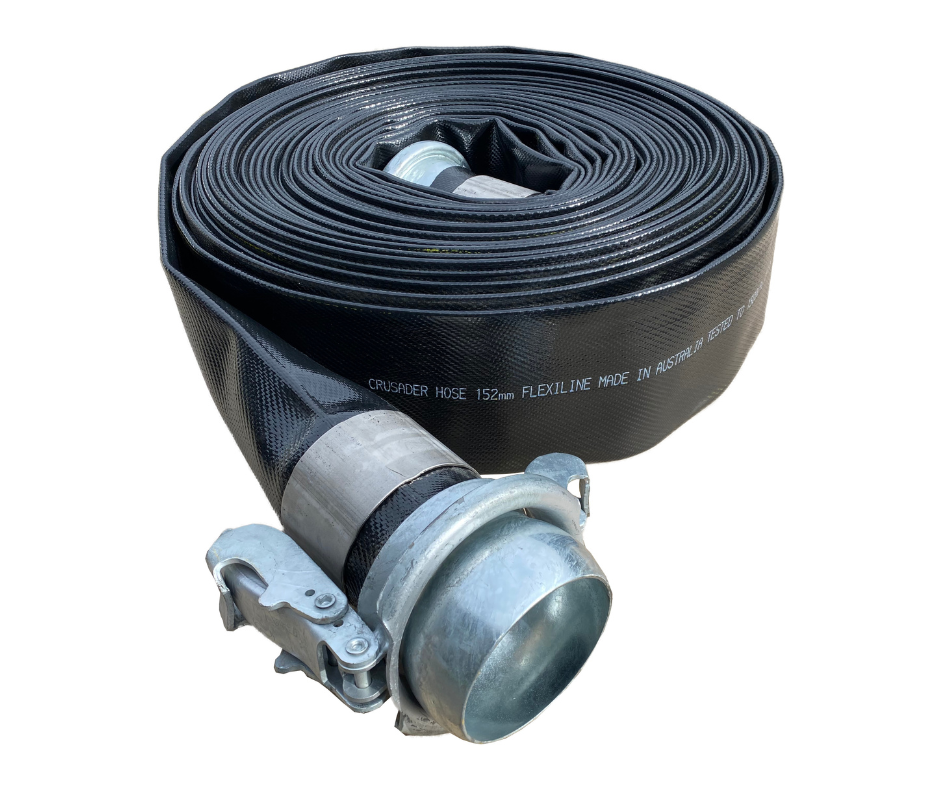

Crusader Hose Flexiline™
