Turntable
For smooth deployment of flatpacks
Turntable
Simple, reliable hose-handling solution

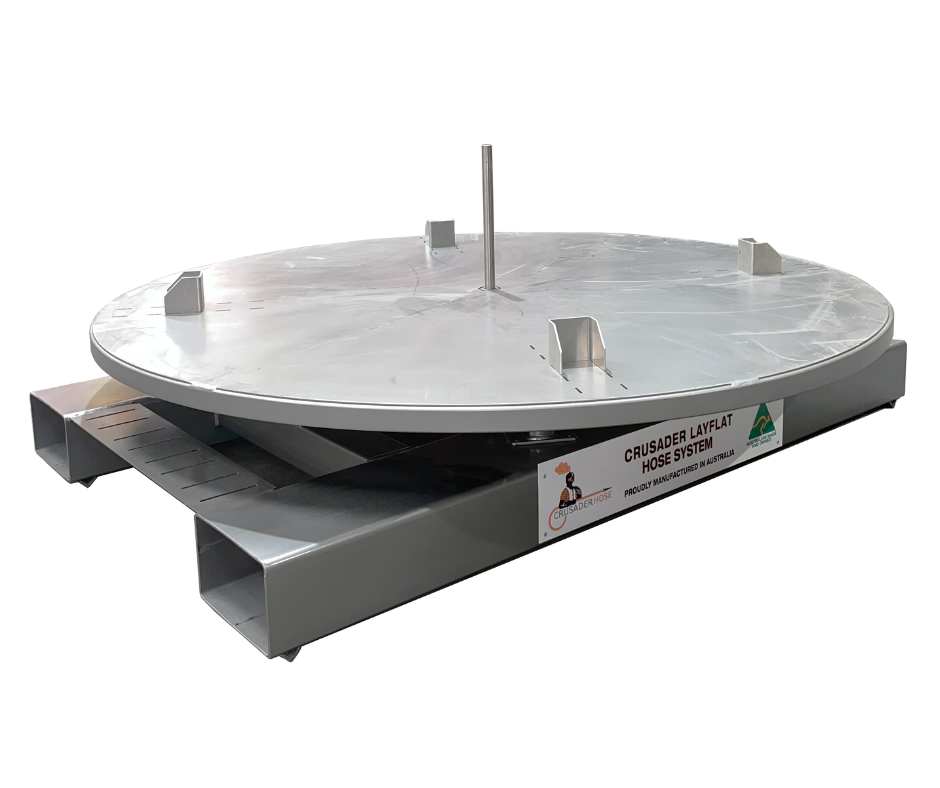

The Turntable is a simple, reliable hose-handling solution designed for mining and civil contractors who need to deploy and reload flat-packed layflat hose safely and efficiently.
Built to prevent spiralling or corkscrewing during unrolling, it reduces manual labour and speeds up hose deployment in high-pit wall and in-pit dewatering applications. Compact, durable, and easy to operate, the Turntable delivers smooth handling and improved safety for teams working in tough environments.
Technical Data
| Dimensions | Tabletop Ø 1800 mm; Tyne pocket length 1820 mm; Height 355 mm (max. height 703 mm) |
| Rated capacity | 1000 kg |
| Tare weight | 254 kg |
| Part # | ACH001TSA |
Features
- Two sets of tyne pockets
- Removable pallet locator brackets
- Removable shaft
- Suits up to 200 m of 12” hose
- Manual operation
- Mild steel frame
- Australian Made
Primary uses

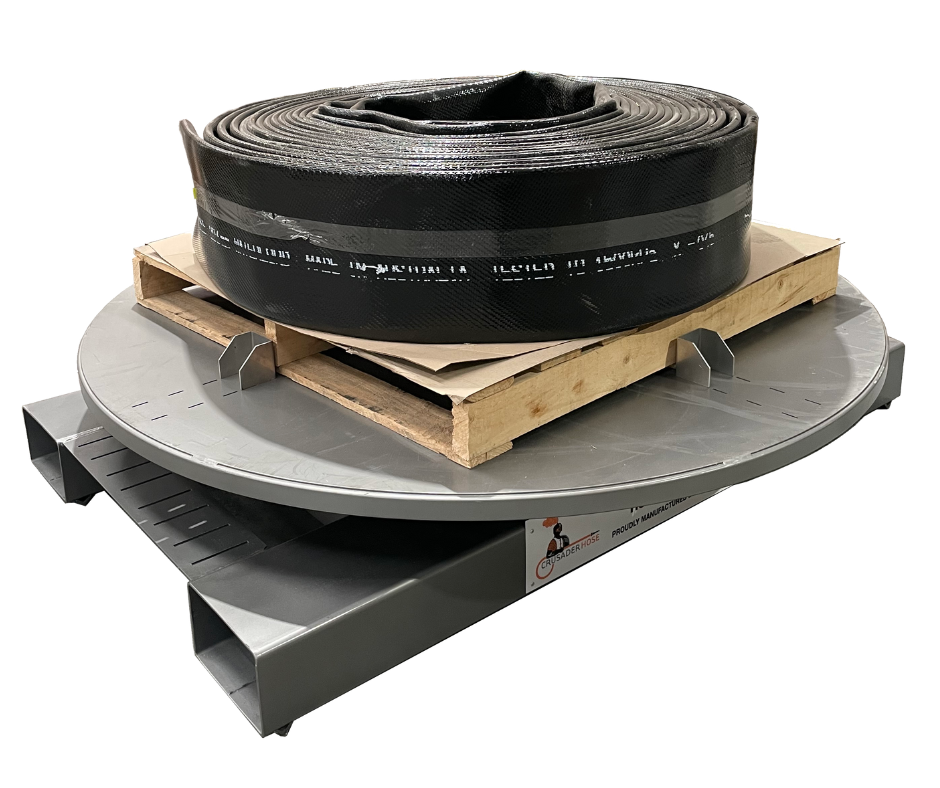

- Unrolling flatpack layflat hose
- Preventing spiralling or corkscrewing when unrolling
- Safe and efficient hose handling
- Reduced labour requirements
- Low environmental impact
- Suitable for mining and industrial applications
