Argyle™ Reel System
Compact, high-performance reel system for effortless hose handling
Argyle™ Reel System
Rapid deployment & retrieval of layflat hose pipelines
This reel system is engineered for rapid deployment and retrieval of layflat hose pipelines in civil, industrial, and mining applications to help operators and field crews achieve efficient water transfer and hose management by reducing manual labour, setup time, and safety risks, and enabling fast, safe, and streamlined hose handling with minimal workforce requirements.
Hose Crate Two Reels
| Features | Two reels - individually operable Each reel suits 1 x 100 m of 8” ID hose* Fork tyne pockets |
| Dimensions | 1760 mm x 1130 mm x 1800 mm |
| Max pull (inner layer) | 996 kg |
| Weight (Tare/Gross) | 620 kg / 1770 kg |
| Part # | ACW200ACA |
*Capacity dependent on winding tension, type of hose & couplings
Hose Crate Single Spool
| Features | Single spool - suits 1 x 250 m of 6” ID hose* Fork tyne pockets |
| Dimensions | 1760 mm x 1130 mm x 1800 mm |
| Max pull (inner layer) | 996 kg |
| Weight (Tare/Gross) | 735 kg / 1740 kg |
| Part # | ACW100ACA |
*Capacity dependent on winding tension, type of hose & couplings

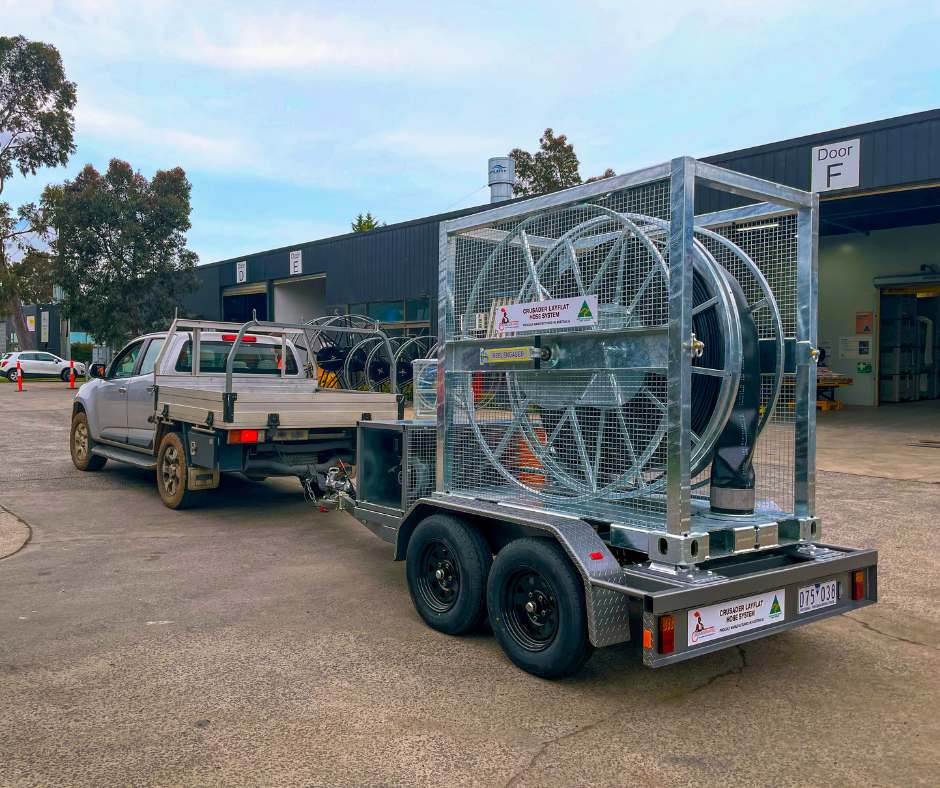

Trailer
| Features | Trailer base with power pack Petrol or diesel available |
Skid Base
| Features | Skid base with power pack Petrol or diesel available |
Features
- Hose crate with two reels or single spool
- Heavy-duty frame - hot-dipped galvanised or painted finish
- Rated lifting & tie-down points
- Free-spool capability
- Trailer-mounted or skid base
- High-torque motor
- Quick-connect couplers
- Key start engine (diesel)
- Handheld remote control
- Australian Made
Primary uses
- Emergency dewatering
- High-volume water transfer
- Safe and easy hose handling
