Mine dewatering efficiency

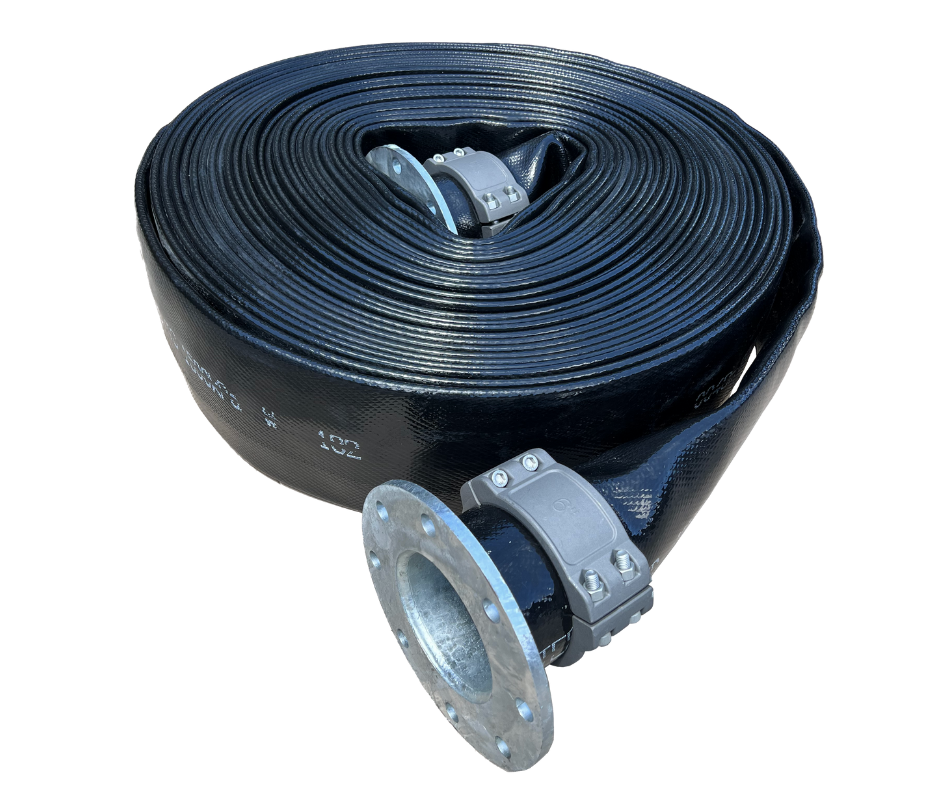

Mine dewatering is a key activity for many mining contractors. We manufacture the Waterlord® hose which has the ability to remove large volumes of water from a mine quickly and safely. Waterlord® is a heavy-duty and reliable layflat mine dewatering hose constructed by weaving a tight polyester fabric and using TPU (thermoplastic polyurethane) thru-the-weave extrusion. It is a continuous length hose that can handle high-working pressure and tough abrasion so is suitable on rugged terrain.

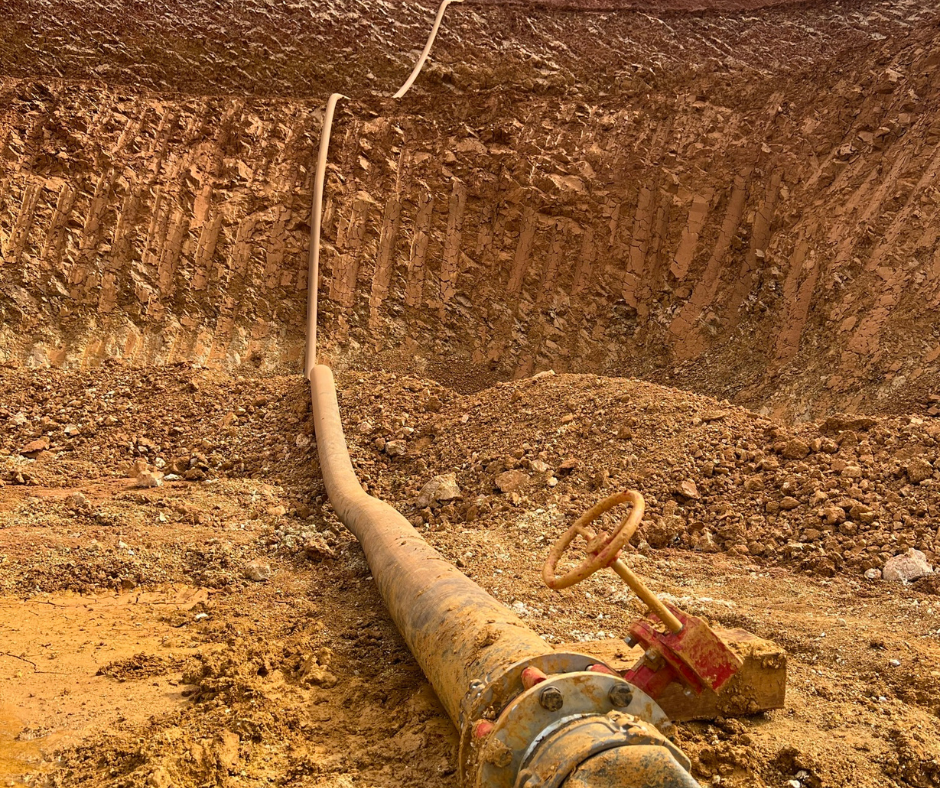

Waterlord® mine dewatering hose is reliable, compact, easy to handle and easy to deploy. Short lengths can be unrolled with little manpower. However, for long runs up mine walls and across pits, hose reel systems are required. These systems are used to rapidly deploy hose so that the water can be pumped out of the pit soon after the rains hit.

Large choice of
diameters & lengths

The Waterlord® mine dewatering hose comes in a range of diameters, from 40mm (1.5”) up to 305mm (12″), capable of achieving over 500 litres per second!

Long-lasting &
high-quality product

All hose is fully manufactured at our Australian factory under stringent quality standards. Each length is individually tested and comes with a 12-month warranty.

Features
  • High working pressure
  • Flexible & easy to move
  • Reel system available
  • Fully tested
  • UV resistant
Primary uses
  • Mine dewatering
  • Sewerage bypass
  • High-pressure pumping applications

Waterlord®
Inside
Diameter

(mm)

Inside
Diameter

(inch)

Working
Pressure

(bar)

Burst
Pressure

(bar)

Burst
Pressure

(psi)

Bend
Radius @

30 psi (m)

Tensile
Load

Tonnes

Avg. Single
Wall Thickness

(mm)

Weight
per metre

(kg)

401.5”27547831.03.03.00.5
502”27547831.03.53.00.6
763”27547831.583.80.9
76 HP3”408011601.6104.51.5
1024”25507252.0104.01.5
102 HP4”408011602.1155.02.3
1275”24486962.514.54.22.1
1526”28568123.1254.83.0
152 HP6”357010153.2256.53.4
2038”15304353.5224.53.5
25410”15304354.0305.04.0
30512”14284064.5315.04.5

People who enquired about Waterlord® our high-volume hose also enquired about our Aqualine layflat bypass water hose.
